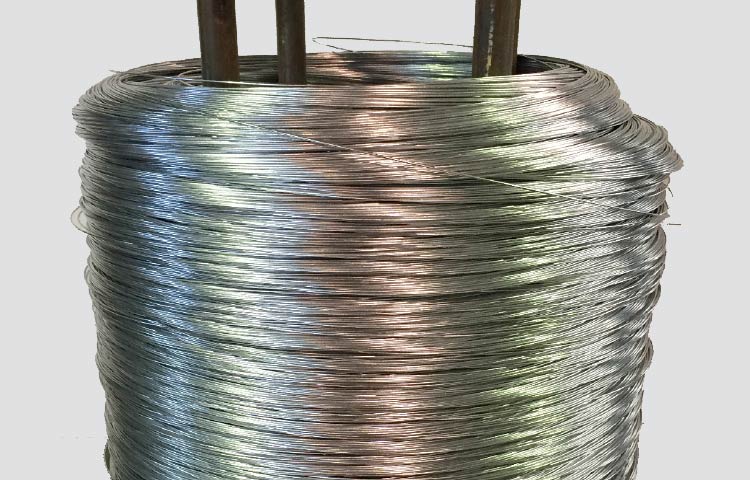

Manufacturing Wire
Zinc/aluminium coated manufacturing wire is generally produced to meet the property specifications set out in the tables below. However, manufacturing wire can be produced with a range of coating thicknesses and with any combination of low, medium, or high tensile strengths. The zinc/aluminium coatings are manufactured to AS/NZS4534:2006 Zinc and Zinc/Aluminium-Alloy coatings on Steel Wire.
HIGHT TENSILE
| DIAMETER (mm) | TENSILE STRENGTH(MPa) | BREAKING LOAD | MINIMUM COATING WEIGHT (g/m²) | WRAP TEST |
|---|---|---|---|---|
| 1.60±0.05 | 1080-1235 | (220-225 kgf) | 100 | pass |
| 2.00±0.07 | 1235-1450 | (395-465 kgf) | 120 | pass |
| 2.50±0.07 | 1235-1450 | (620-725 kgf) | 125 | pass |
| 3.15±0.08 | 1050-1250 | (835-995 kgf) | 130 | pass |
| 4.00±0.10 | 1100-1400 | (1410-1795 kgf) | 140 | pass |
MEDIUM TENSILE
| DIAMETER (mm) | TENSILE STRENGTH(MPa) | BREAKING LOAD | MINIMUM COATING WEIGHT (g/m²) | WRAP TEST |
|---|---|---|---|---|
| 2.50±0.07 | 750-950 | (375-475 kgf) | 125 | pass |
| 3.15±0.08 | 700-850 | (555-675 kgf) | 130 | pass |
LOW TENSILE
| DIAMETER (mm) | TENSILE STRENGTH(MPa) | BREAKING LOAD | MINIMUM COATING WEIGHT (g/m²) | WRAP TEST |
|---|---|---|---|---|
| 1.60±0.05 | 430-525 | (90-110 kgf) | 110 | pass |
| 2.00±0.07 | 430-525 | (140-170 kgf) | 120 | pass |
| 2.24±0.07 | 430-525 | (175-210 kgf) | 120 | pass |
| 2.50±0.05 | 430-525 | (215-265 kgf) | 125 | pass |
| 2.80±0.08 | 430-525 | (270-330 kgf) | 130 | pass |
| 3.15±0.08 | 430-525 | (340-415 kgf) | 130 | pass |
| 4.00±0.10 | 430-525 | (550-675 kgf) | 140 | pass |
| 5.00±0.10 | 430-525 | (860-1050 kgf) | 150 | pass |
