Steel Y Posts
Provide an economical alternative to wood posts.
Manufactured from 2.04kg (per metre) heavy duty steel, Cyclone steel Y posts provide a durable solution for temporary and permanent fencing requirements. All Cyclone Y posts are sold in bundles of 10.
1800mm Y Post
Size range available:
| HEIGHT (mm) |
NO. HOLES | HOLE SPACINGS FROM TOP OF POST (mm) |
|---|---|---|

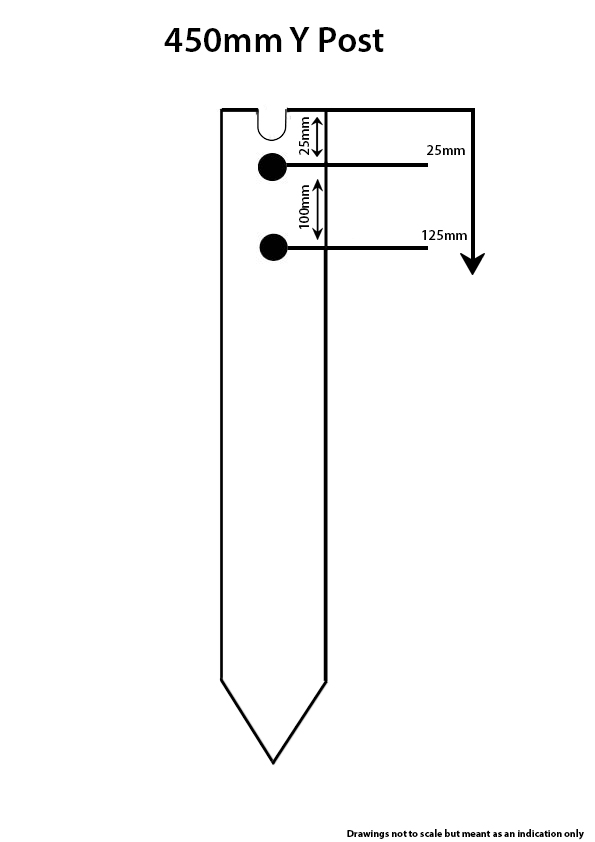

| 450 | 2 | Top - 25 - 100 |

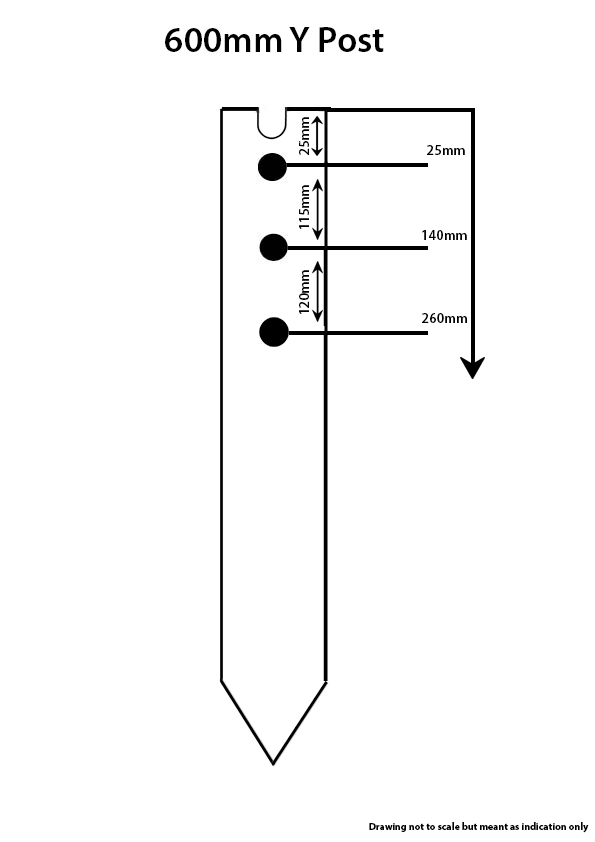

| 600 | 3 | Top - 25 - 115 - 120 |

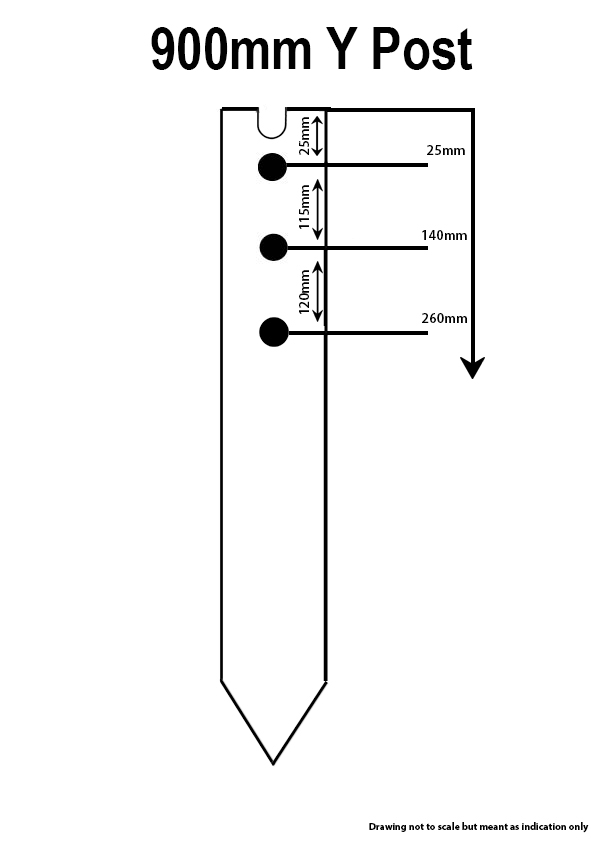

| 900 | 3 | Top - 25 - 115 - 120 |

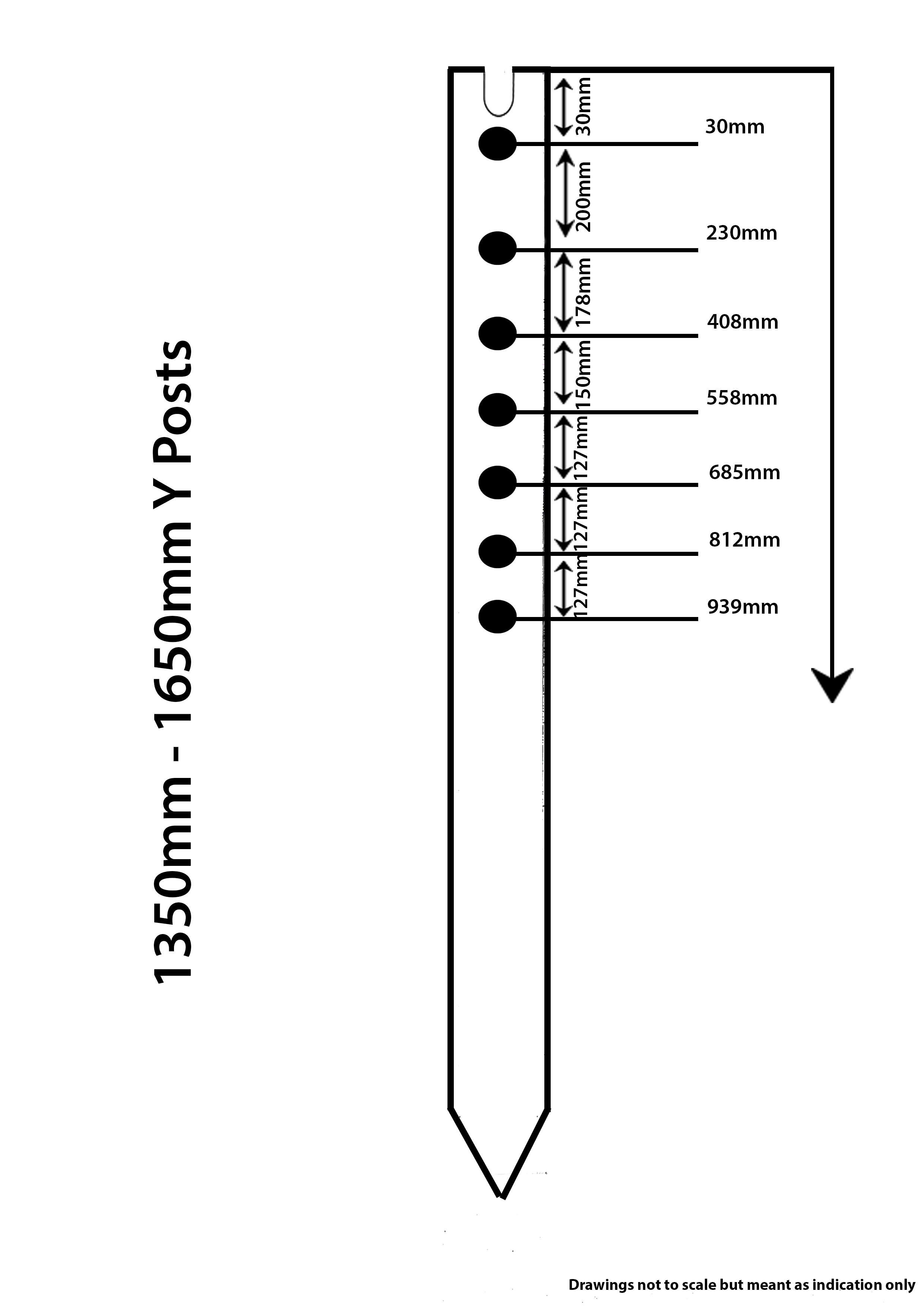

| 1350 | 7 | Top - 30 - 200 - 178 - 150 - 127 - 127 - 127 |
| 1500 | 7 | Top - 30 - 200 - 178 - 150 - 127 - 127 - 127 |
| 1650 | 7 | Top - 30 - 200 - 178 - 150 - 127 - 127 - 127 |

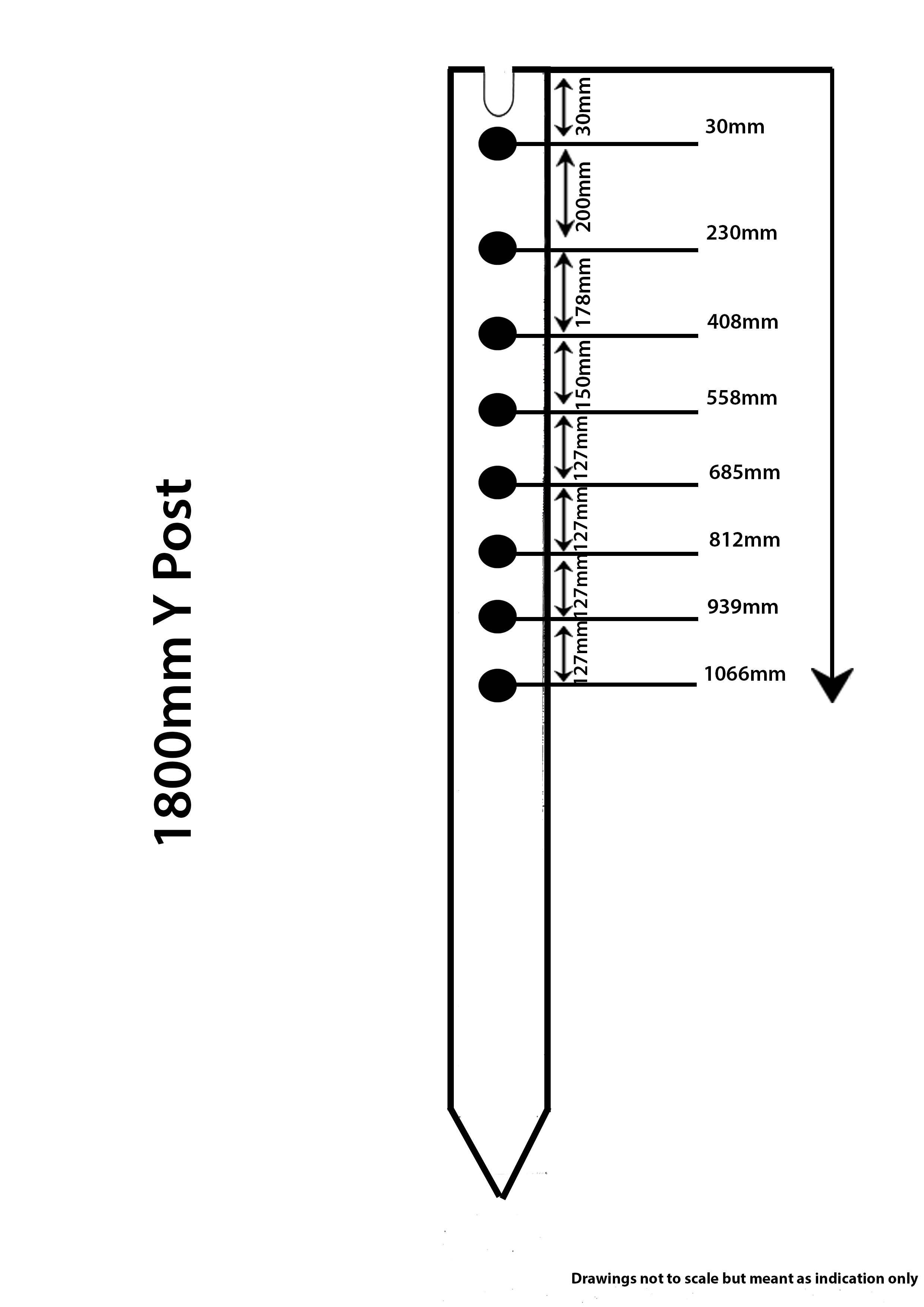

| 1800 | 8 | Top - 30 - 200 - 178 - 150 - 127 - 127 - 127 - 127 |

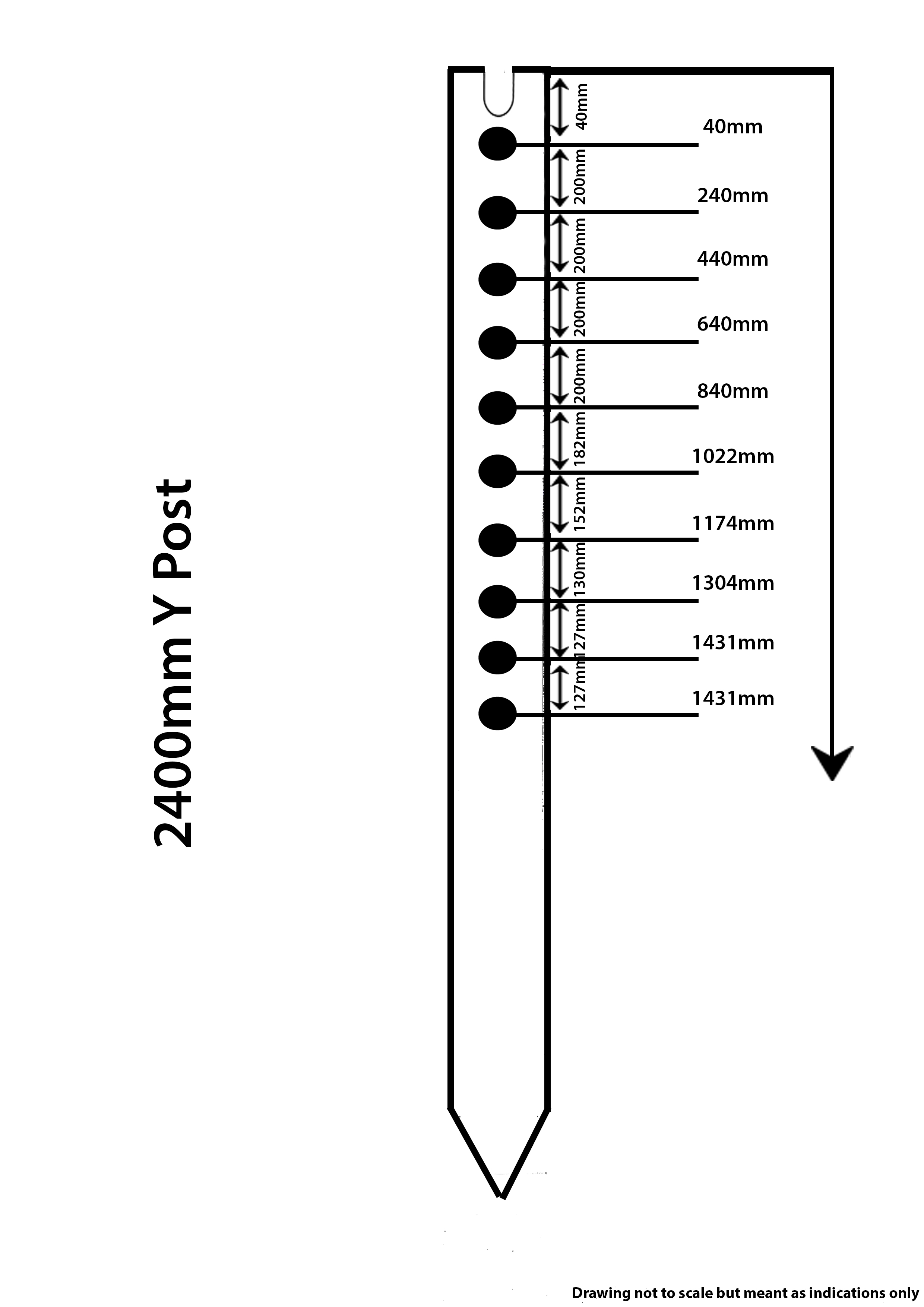

| 2400 | 10 | Top - 40 - 200 - 200 - 200 - 200 - 182 - 152 - 130 - 127 - 127 |

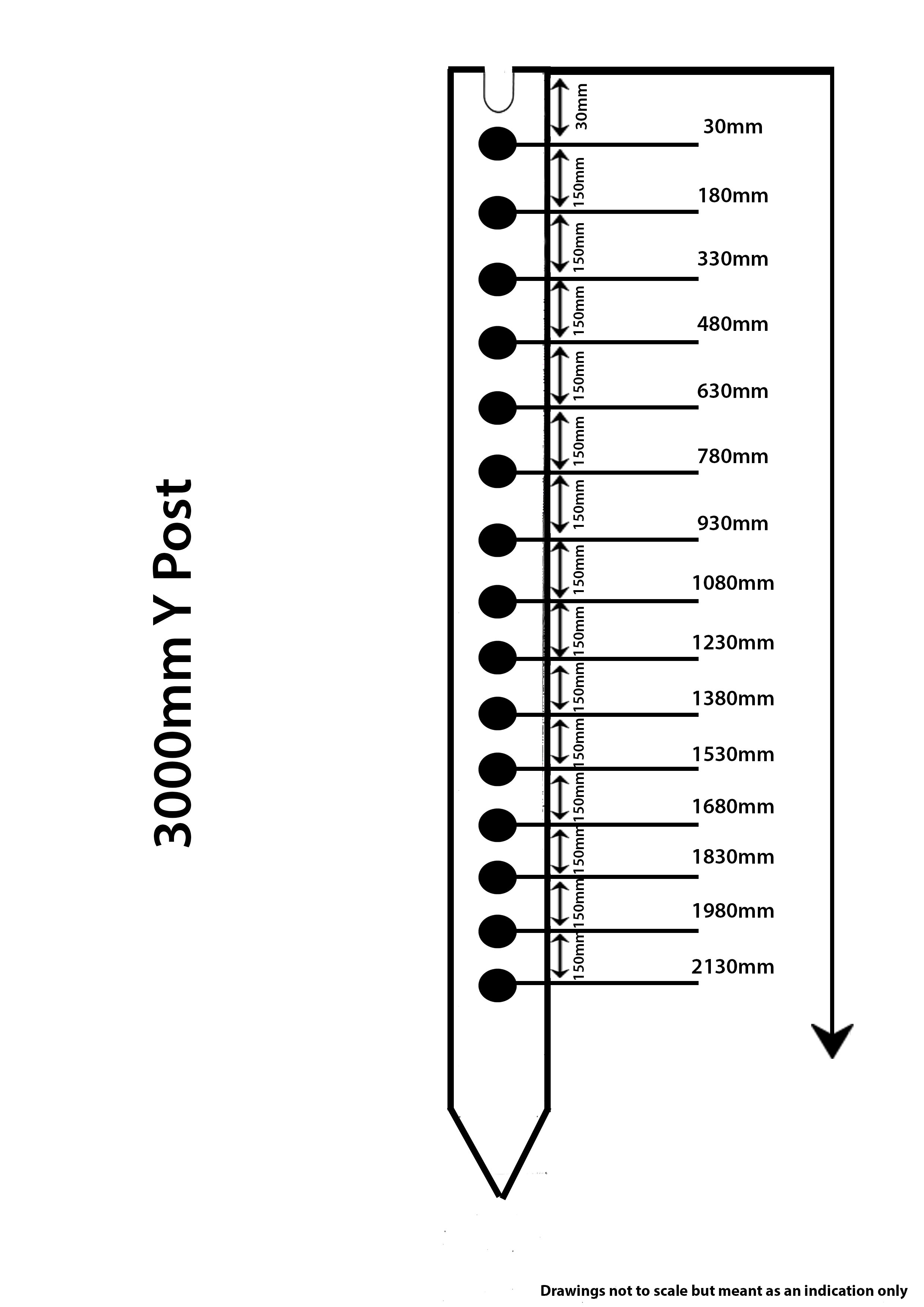

| 3000 | 15 | Top - 30 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 - 150 |
Click on any of the Y posts sizes in the table above in order to download a PDF diagram indicating the hole spacing's.
